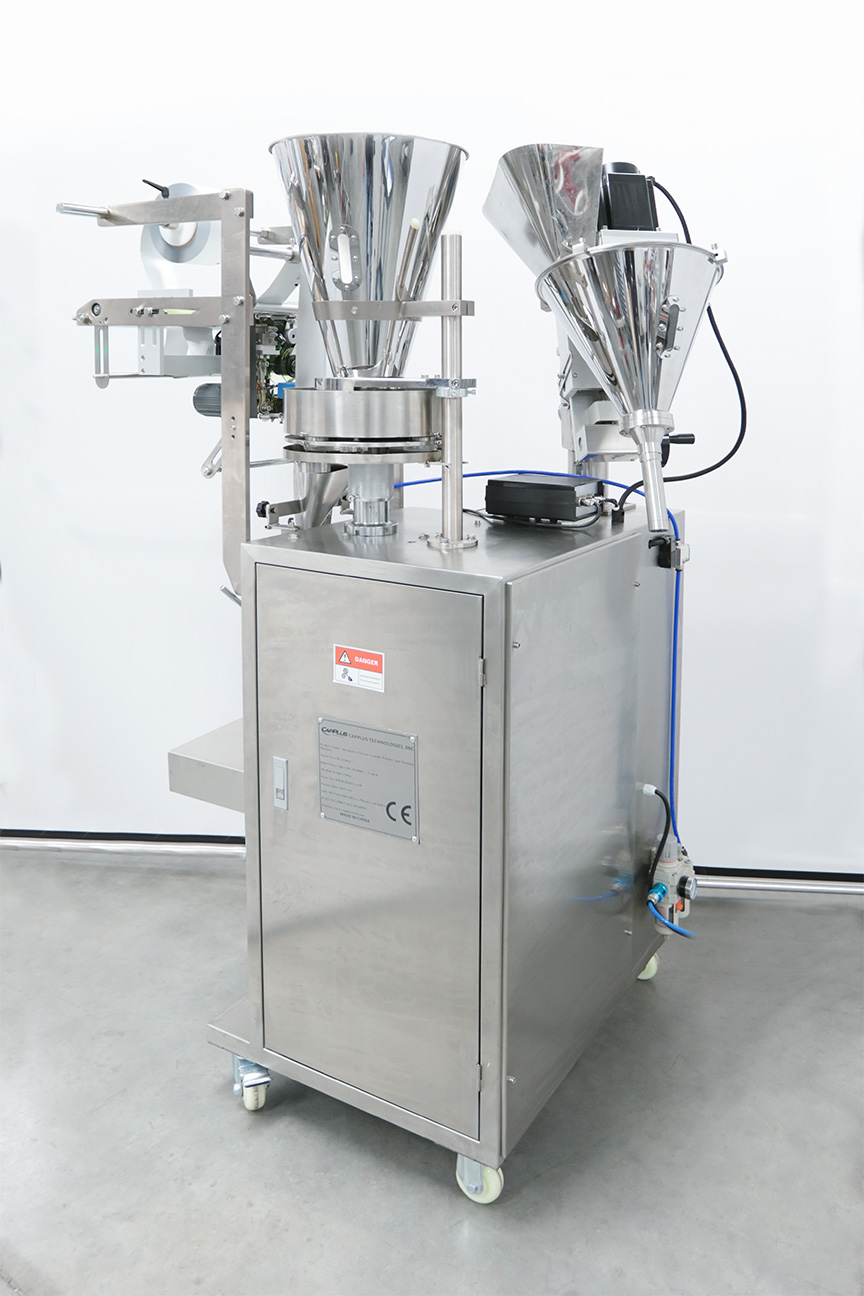

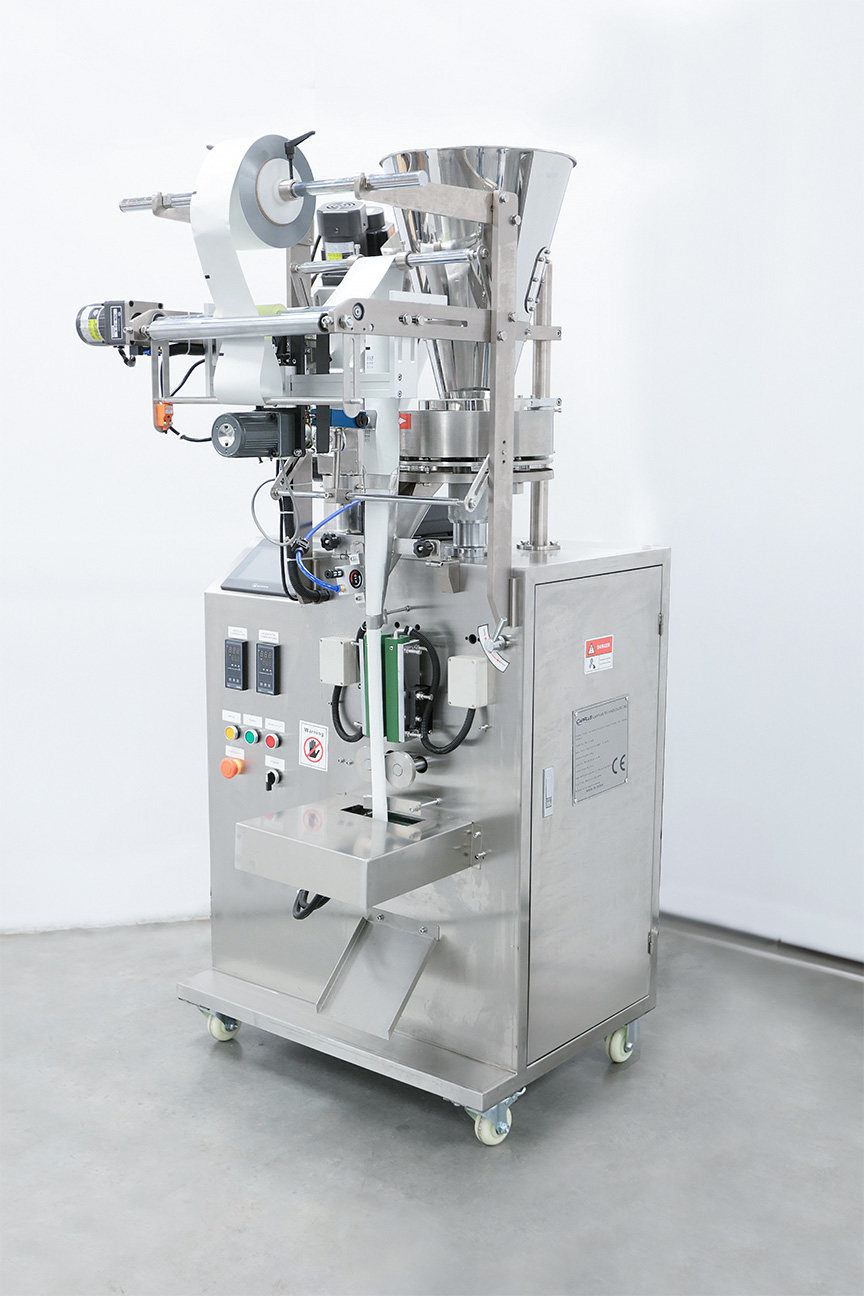

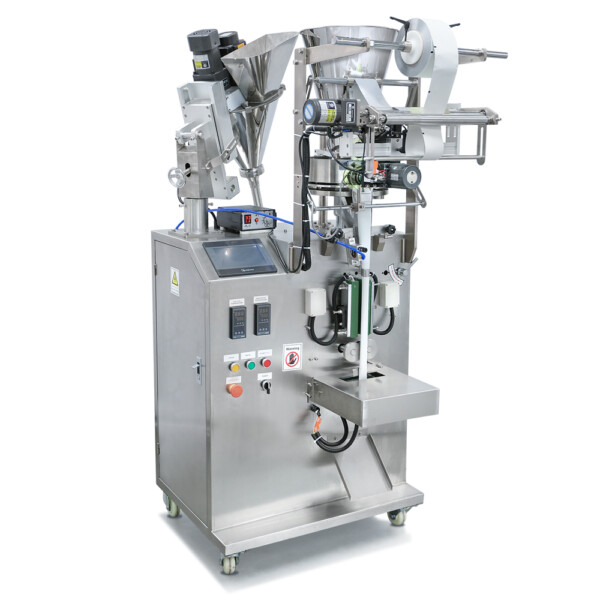

SP50 Filling Vertical Form, Fill & Seal Stick Packer includes the following:
Filling Station:
– Auger Filling System for Non-free Flowing Materials
– Speed: Ranges from 30~50 Bags/min.
Sealing Station (Choose One):
– Three (3) Side Sealing (Top, Bottom, Rear)
– Four (4) Side Sealing
– 180mm Maximum Seal Length

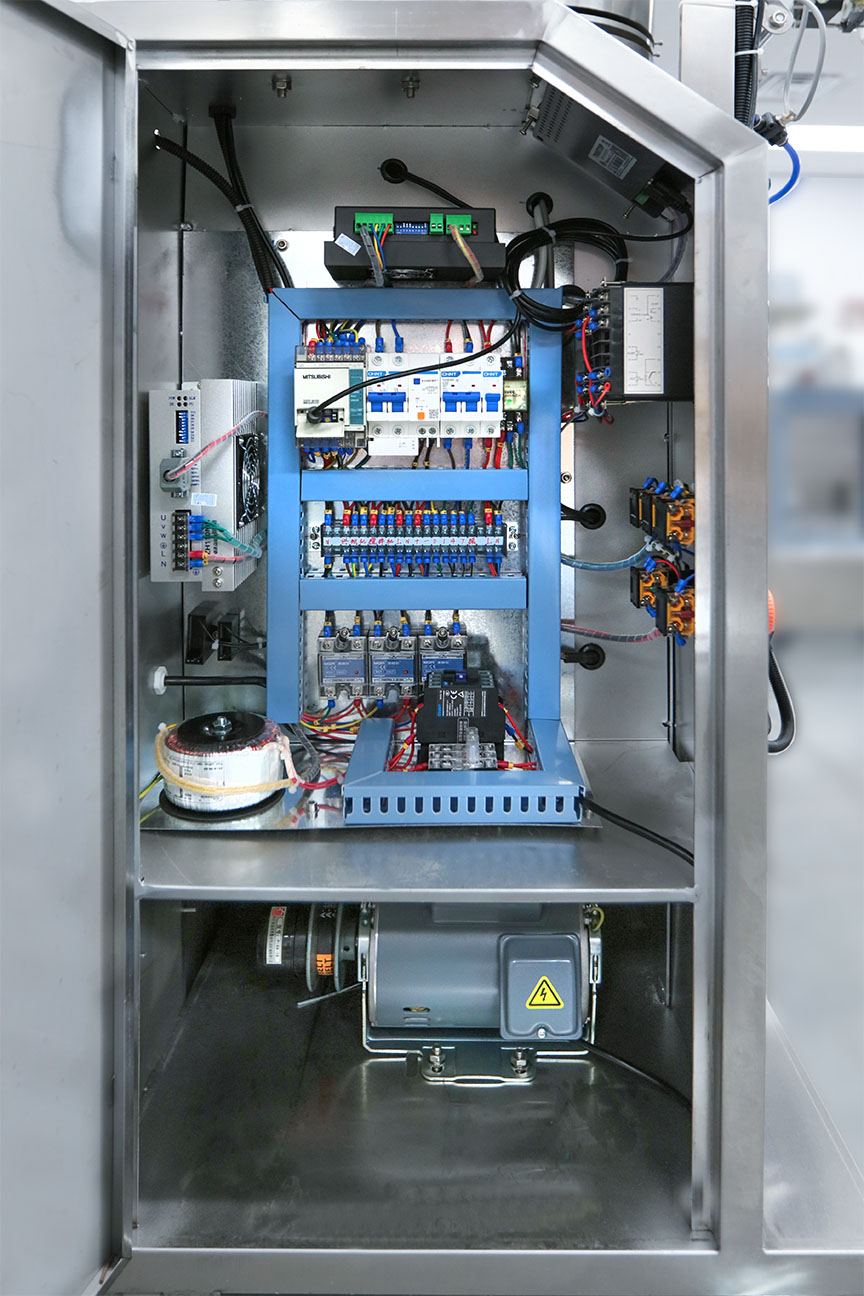

Controls:
– Color Touch Screen
– Variable Speed
– Variable Sealing Temperatures
– Photo Registration
Film Specifications:
– One Forming Funnel (Need Bag Size)
– 250mm Max. Film Width
– 50~180mm Bag Length
– 15~115 Bag Width
Utility Requirements:
– Power: 1ph / 220V/60Hz
– Air Consumption: 0.8Mpa, 0.5M3/min
– Dimensions: L680 x W730 xH1600
– Weight: 230Kg
Mounted on Casters
