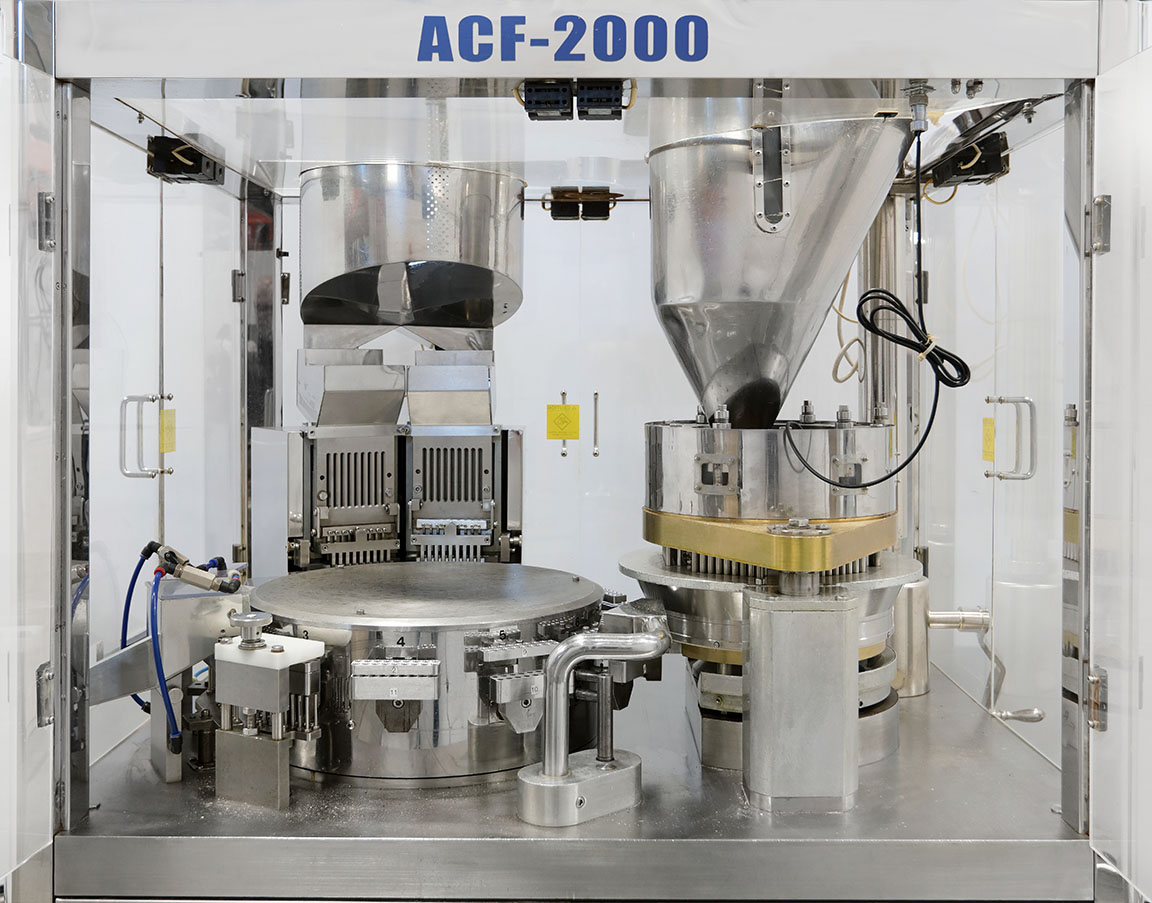

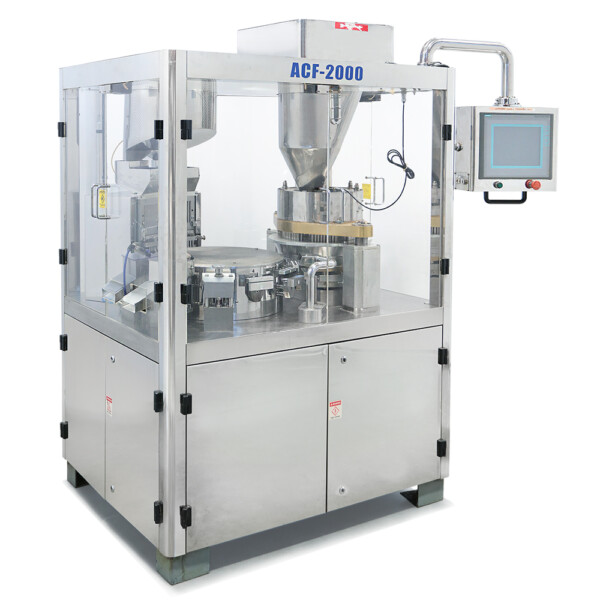

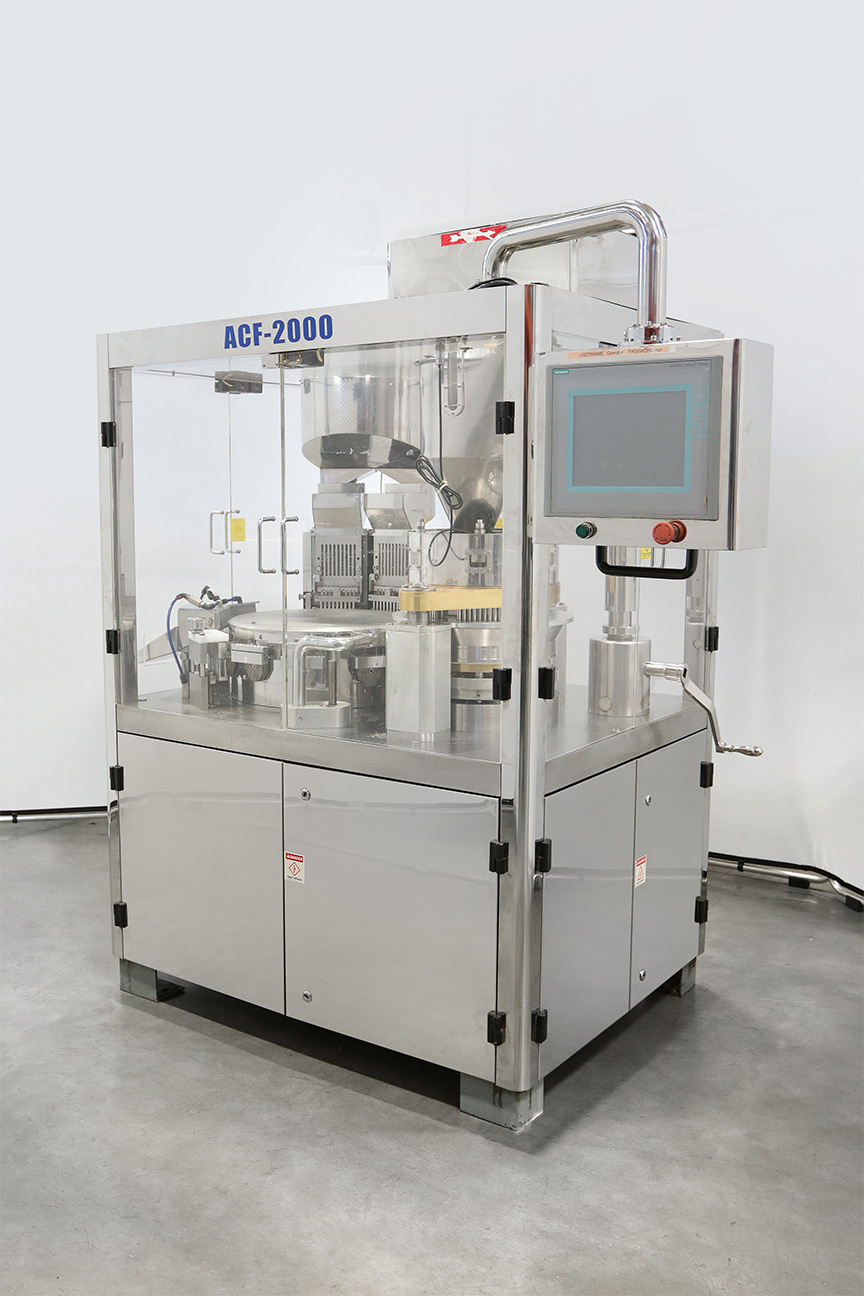

TES ACF2000 Automatic Capsule Filler with #0 tooling rated at up to 120,000 capsules per hour. 12″ color touch screen controls.
Stantions include: capsule orientation & separation, tamping pin dosing station, faulty capsule reject, closing, ejection and cleaning. Enclosed Turret, Capsule and Powder level sensors, Door safety sensors.
Includes dust collector and vacuum pump.
Air Requirement: 10 CFM @ 100 PSI, clean and dry.
Dimensions: L50″ x W50″ x H85″.
Additional Tooling:
– #1 All parts but dosing disc
– #00 All parts but dosing pins (2 x dosing disc)
Quick Changeover Parts: powder hopper, capsule hopper, dosing bowl, tamping ring, powder scraper, auger, lower capsule hoppers, ejection chute, closing station top. #00 12 x Segments upper & lower, 2 x magazines
Weight: 4410 lbs (1600Kg)
